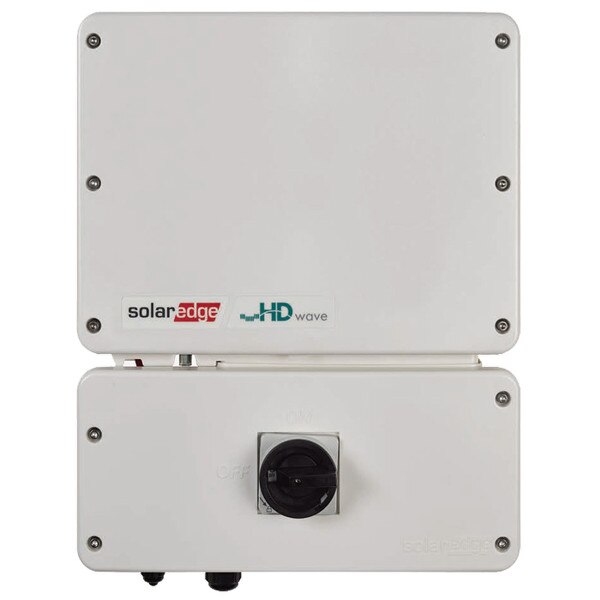

SolarEdge Technologies 7.6 kW 240 Vac Home Hub Inverter with HD-Wave Technology

The SolarEdge Energy Hub Inverter (Energy Hub Inverter) is a highly flexible, resilient single phase inverter that offers superior performance, maximum energy cost savings, built-in consumption monitoring and optional integration with battery, EV charging and smart energy solutions. Supports every type of residential roof, from small rooftops to large, high power installations.The performance of HD-Wave meets StorEdge in a next generation home backup solution for higher efficiency and greater flexibility.

Feature Bullets

• One storage solution to back up the entire home
• One inverter that does it all: ready for battery and EV charging, includes built-in energy monitoring
• One flexible system to meet every future homeowner need
• With prism technology, RGM and consumption monitoring
• Generator Compatible - The unique ability to connect to a generator for even more power
• Modular design - future ready with optional upgrades to DC-couple storage for full or partial home backup, built-in consumption monitoring and direct connection to the SolarEdge smart EV charger
• Up to 200% DC oversizing means more energy and self-consumption, less clipping, and optimized savings
• Higher efficiency of 99%: one conversion with DC vs three with AC
• Charge and discharge battery according to local times-of-use rates to keep bills low
• One app to monitor solar production, energy storage and usage

Specifications:

Type: With HD-Wave Technology
Voltage Rating: 240 Vac
Phase: 1
Power Rating: 7.6 kW
Frequency Rating: 60 Hz
Output Voltage: 211-264 Vac, 105-132 Vac
Input Voltage: 480 Vac/380 Vdc
Dimensions: 14.6 in Width x 17.7 in Length x 6.8 in Depth
Input Current: 20 A
Efficiency: 99.2%
Enclosure Rating/IP Rating: NEMA 4X
Warranty: 12-25 Years
Standards: UL1741, UL1741 SA, UL 1699B, CSA C22.2, Canadian AFCI, IEEE1547, FCC
